Anker HDMI Switch (2 in 1 Out, 4K HDMI) User Guide (A83H1)

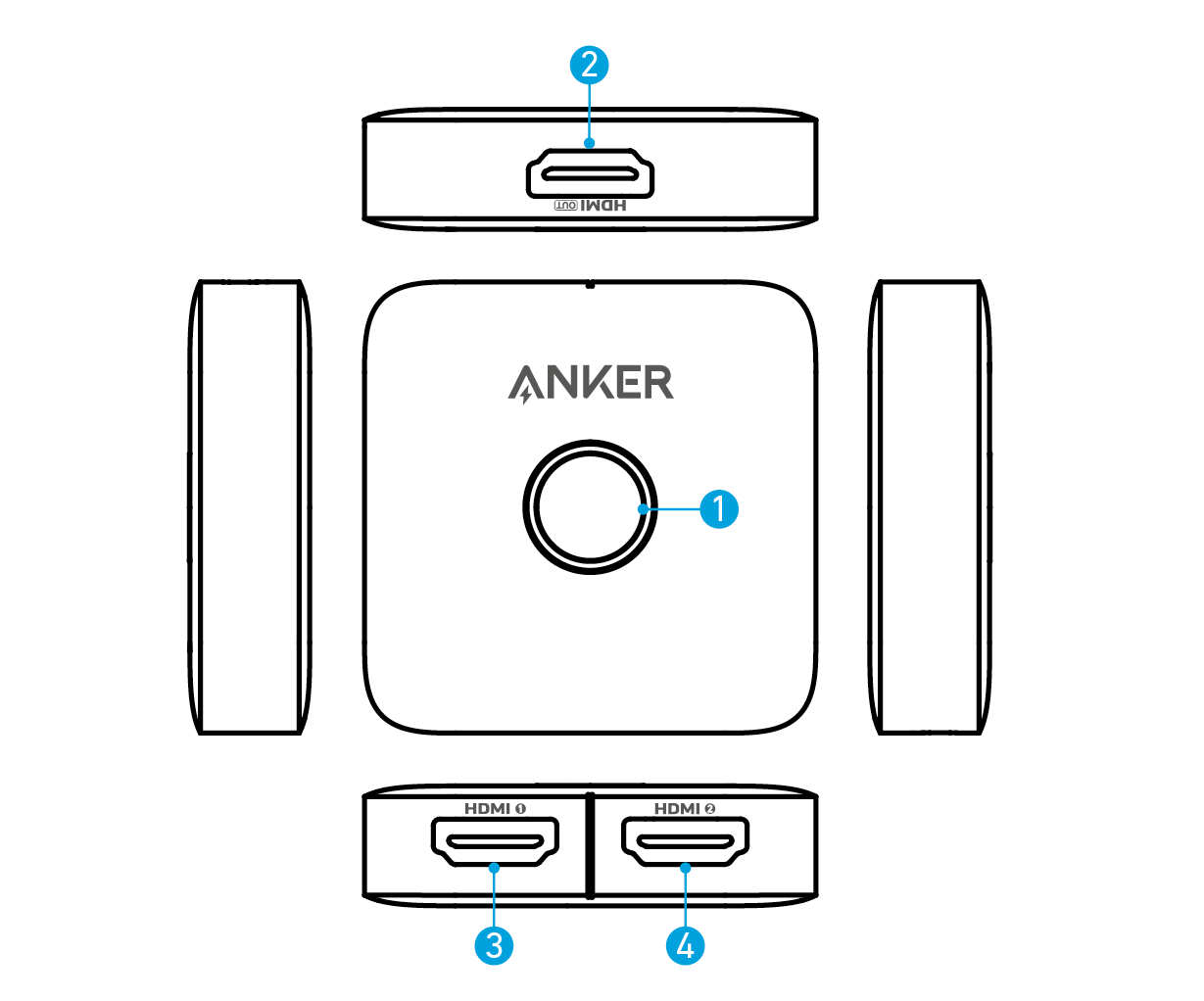

At a Glance

	Switch Button	Press to switch input sources
	HDMI Output Port	4K@60 Hz
	HDMI Input Port 1	4K@60 Hz
	HDMI Input Port 2	4K@60 Hz

Using Your Product

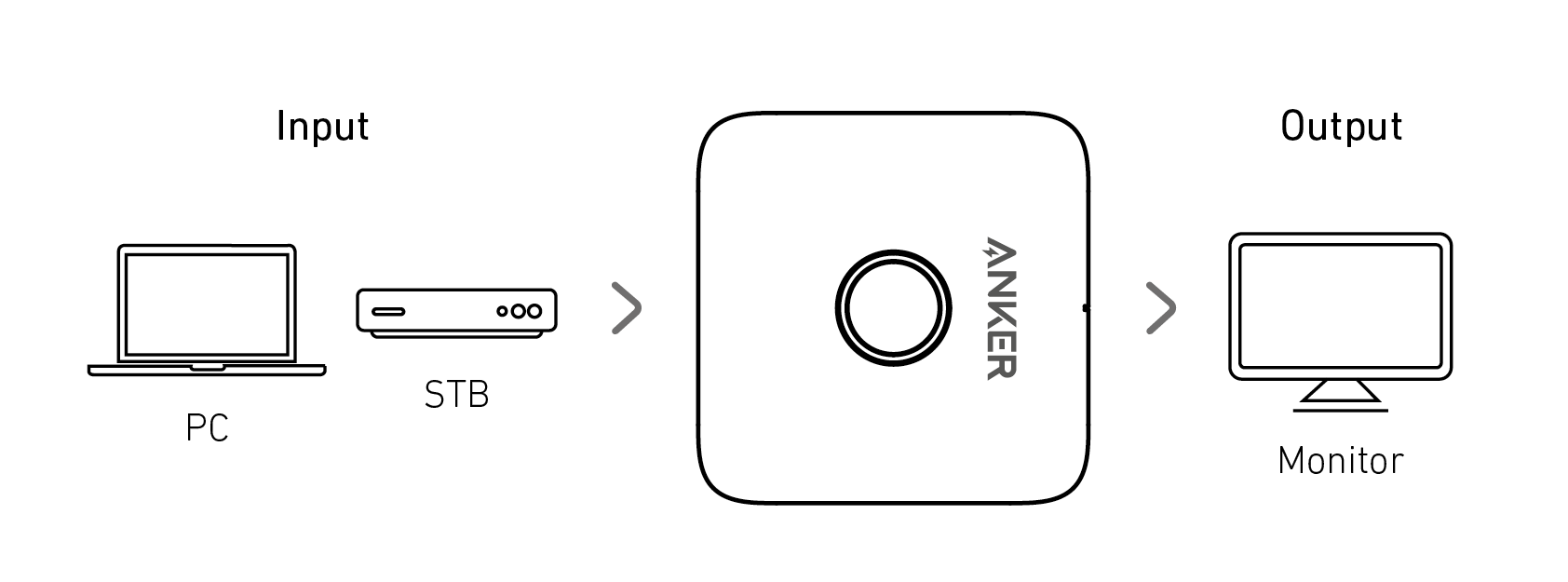

Use as HDMI Switch (2-in-1-out Mode)

Connect 2 HDMI sources to 1 HDMI display.

Press the switch button on the top to choose HDMI source you need to watch.

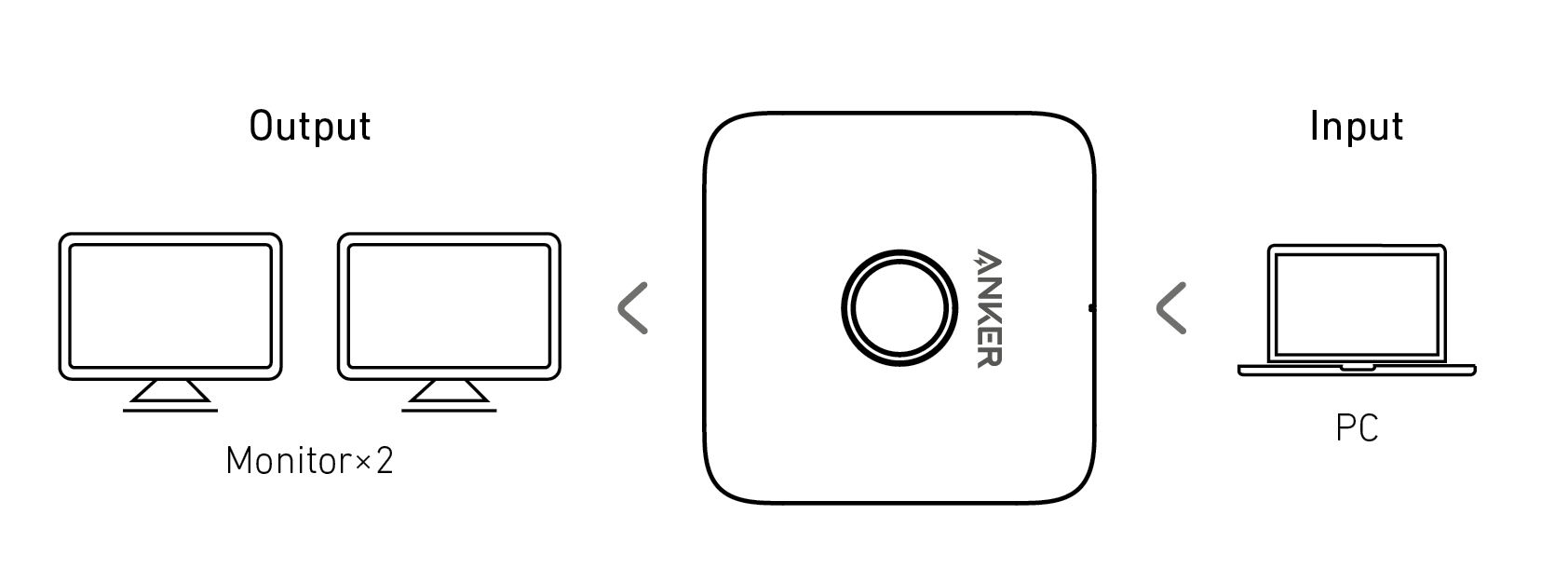

Use as HDMI Splitter (1-in-2-out Mode)

Connect 1 HDMI source to toggle between 2 monitors.

Press the switch button on to choose which monitor you want to watch.

⚠️ Two monitors cannot be used simultaneously in this 1-in-2-out mode.

Note: The quality of the projection is influenced by the length and type of HDMI cable used. Please refer to the following table to select the most suitable HDMI cable for your needs.

Resolution	HDMI Cable Length (for Input Port)	HDMI Cable Length (for Output Port)	HDMI Cable Length (Total)	AWG (American Wire Gauge)
4K@60Hz	≤1m	≤1m	≤2m	30AWG
4K@30Hz	≤1m	≤15m	≤16m	26AWG
1080P@60Hz	≤1m	≤20m	≤21m	24AWG

Specifications

Input	HDMI Ports x2
Output	HDMI Port x1
Resolution	4K@60Hz, backward compatible with 1080P/1080i, 720P/720i, 576P/576i, 480P/480i
Function Supported	3D Contents, CEC, HDCP2.2
Audio Formats Supported	DTS, DSD, Dolby AC3, 5,1 and 7.1 Channel
Audio Sampling Rate Supported	Up to 192 KHz, 24 bit
Data Transfer Speed	Up to 18Gbps
Bidirectional Switch	Supported
Supported Systems	macOS 12 or later, Windows 10 or later
