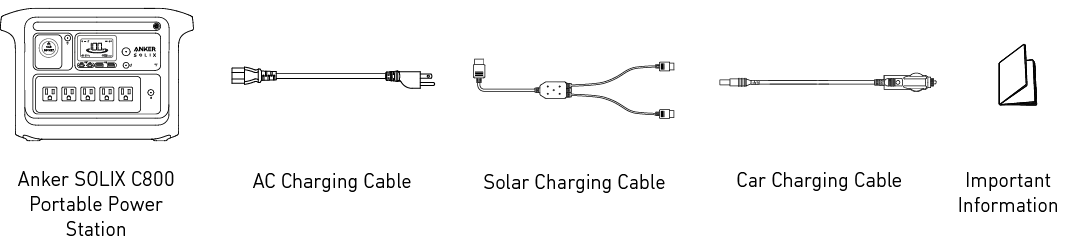

What's in the Box

Overview

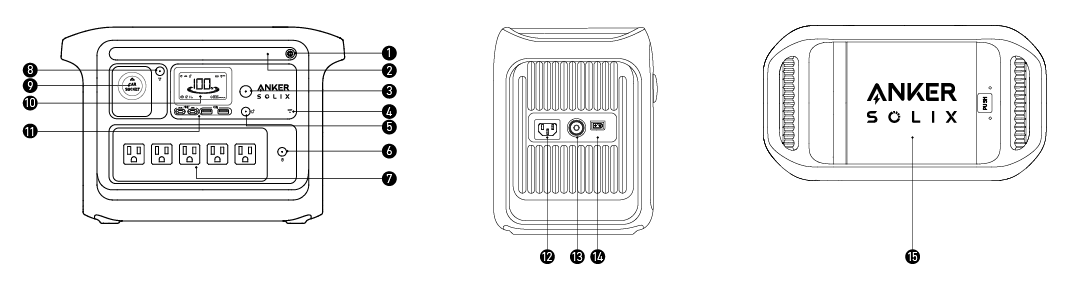

Product Overview

Ambient Light Button	Ambient Light
Main Power Button	Reset Button
IoT Button	AC Outlet Button
AC Output Ports	Car Socket Button
Car Socket	LCD Screen
USB Ports	AC Input Port
Overload Protection Switch	Solar / Car Input Port
Storage Compartment

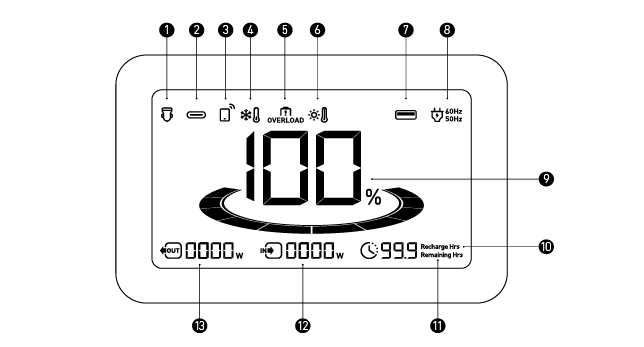

LCD Screen Guide

Car Charging

USB-C Output

IoT:

Press the IoT button once to turn on Bluetooth and Wi-Fi, and connect your devices through the app when this icon appears on the screen.

Press the IoT button for 2 seconds to turn off Bluetooth and Wi-Fi.

Press the IoT button for 7 seconds to reset Bluetooth and Wi-Fi.

Low-Temperature Alert: When this icon shows, stop using the power station until the icon disappears.

Overload Warning:

This icon appears when a port is overloaded. The port will be turned off to avoid any damage. Please remove the device causing overload.

High-Temperature Alert:

When this icon shows, stop using the power station and let it cool down until the icon disappears.

USB-A Output

AC Charge and Voltage Frequency

Remaining Battery for Power Station

Estimated Time to Fully Recharge

Estimated Time for Battery to Deplete

Current Input Power

Current Output Power

Recharging Your Power Station

AC Recharging (750W Max)

Recharge your power station by connecting to a wall outlet with the AC charging cable.

UltraFast Recharging (1100W Max)

The UltraFast charging needs to be activated from the Anker app home page.

Regular charging provides the best protection for the battery. We recommend using UltraFast charging when necessary.

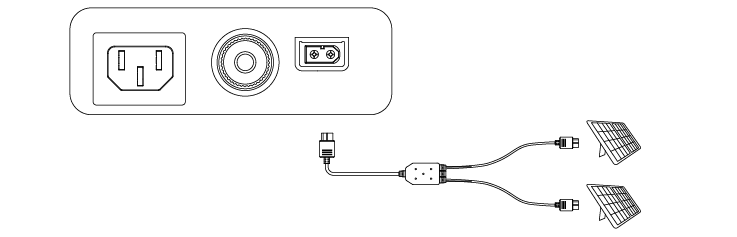

Solar Panel Recharging (300W Max)

Recharge your power station with a maximum solar input of 300W by connecting up to two solar panels, as shown in the figure, with a solar charging cable.

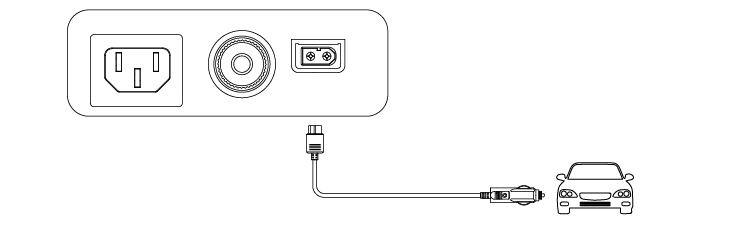

Car Recharging

Recharge your power station by connecting to a car's output port with the car charging cable.

When your portable power station only has 1% battery remaining, the "Remaining Battery" indicator will flicker to remind you to recharge.

Powering On / Off

Press the main power button for 3 seconds to turn your power station on or off.

When the "Remaining Battery" indicator shows on the LCD screen, your power station is ready to charge devices.

When powered on, press the main power button to turn the screen on or off. The screen will automatically turn off after 30 seconds of lighting up. The auto-off time can be set in the Anker app. The power station will power off automatically if the output buttons are turned off and no power loads are detected for 12 hours. The standby duration can be set in the Anker app.

Powering Your Devices

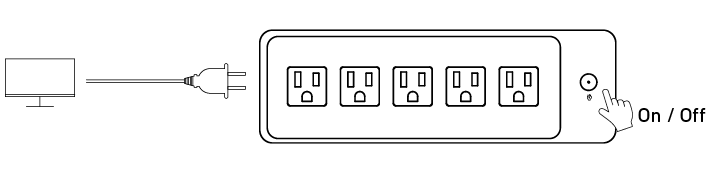

AC Charging

Press the AC outlet button and connect your device with the AC output ports.

The AC outlets can intelligently identify whether a plug is inserted. This helps prevent power waste by automatically turning off the power station if no plug is detected for more than 15 minutes.

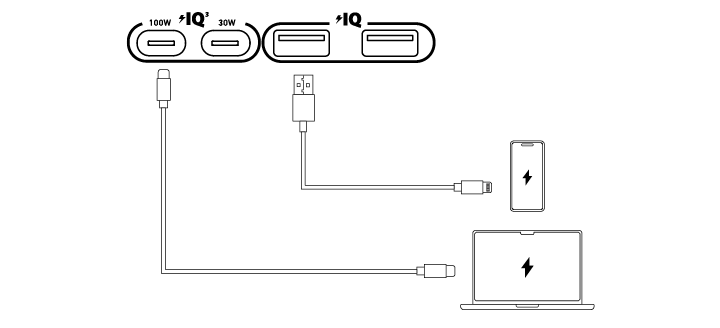

USB Charging

Connect your devices to the USB ports.

Car Socket Charging

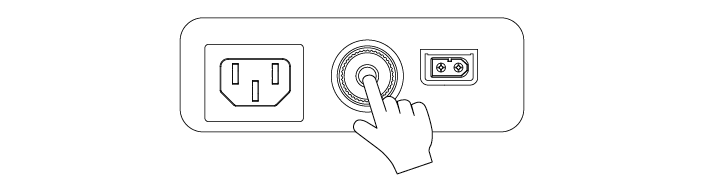

Turn on the car socket and connect your devices to start charging.

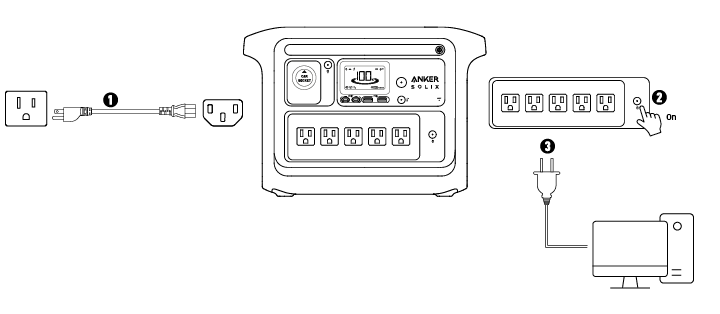

Uninterruptible Power Supply (UPS)

To use the UPS feature, connect your power station to a wall outlet with the AC charging cable, then press the AC outlet button and connect your devices via the AC output ports.

SurgePad™

Using the SurgePad™ feature, the power station can power high-wattage devices up to 1600W without overload.

• SurgePad™ automatically turns on when the total output exceeds the rated output, allowing the power station to deliver rated power to high-wattage devices.
• SurgePad™ does not function in bypass mode (when the power station is being charged with the AC output on).
• SurgePad™ works better with devices that generate heat, but does not support precision instruments and other devices that have voltage protection or strict voltage requirements. To see if SurgePad™ works with your high-wattage devices, try powering them with the power station.

Anker App for Smart Control

You can remotely control your power station using the Anker app.

1. Download the Anker app from the App Store (iOS devices) or Google Play (Android devices), or by scanning the QR code.

2. Connect the device to a network before using the app for the first time. After connecting successfully, you can connect your device off-grid.

3. Firmware update: You will be informed once a new firmware version is detected when you connect the power station to the app. During the update, ensure the power station is AC charged and connected to Wi-Fi.

Light

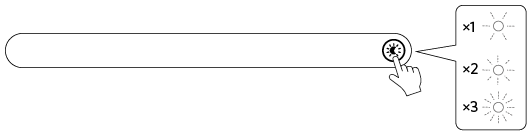

Ambient light

Press the button once to turn on the ambient light, and press again up to 2 times to switch between brightness levels.

SOS Mode

Hold the button for 2 seconds to turn on SOS mode.

FAQ

Q1: What is the maximum power output of the AC output ports?

The AC output ports can deliver a maximum of 1200W rated power to connected devices.

Q2: What should I do when using a solar charger to charge my power station?

The solar input supports an 11-60V solar charger with an XT-60 connector. The supported current is 10A max. We recommend using Anker solar panels (200W or 400W) to get the best compatibility.

Q3: Can the USB-C ports charge the power station (input only), or are they output only?

The USB-C ports support output only.

Q4: What should I do when AC recharging fails?

If AC recharging does not work, check if the overload protection switch is turned on. If it is on, press down to reset and then continue recharging.

Q5: How do I reset my power station?

If your power station is not working correctly, insert a paper clip or pin into the reset hole for 1 second for a factory reset. If the power station still doesn't work, please contact support@anker.com.

Q6: Why is the power station not working after it hasn't been used for a long time?

If the power station is stored at a low capacity for a long time, lithium batteries will self-consume power which may lead to a quick discharge. This often leads to poor conductivity and a reduced battery lifespan that causes the battery not to work.

Q7: How should I store and maintain the power station?

When storing your power station, please make sure that you:

1) Turn off the main power button.

2) Store the power station in a dry and cool environment.

3) Check the remaining battery capacity each week. If the battery level is below 30%, fully charge the power station. Do not forget to charge it to 100% once every 3 months.

Specifications

Battery type	LiFePO(4) Cell
Cell part number	NANJING CBAK ENERGY TECHNOLOGY Co.Ltd 32140FS-15000mAh
Cell number	16S1P
Cell Capacity	768Wh
AC Input Voltage	100-120V~ 12A Max, 60Hz
AC Input Power (Charging)	750W Max
AC Input Power (Bypass Mode)	1440W Max
AC Input Power (UltraFast Charging)	1100W Max
Solar Panel Input	11-60V10A(300W Max)
Car Charger Output	12V10A
AC Output	120V~ 10A, 60Hz, 1200W Max
Max Device(s) Power (with SurgePad™)	1600W
USB-A Output	5V2.4A Per Port
USB-C Output (100W)	5V3A / 9V3A / 15V3A / 20V3A / 20V5A(100W Max)
USB-C Output (30W)	5V3A / 9V3A / 12V2.5A(30W Max)
UPS	20ms
Discharging Temperature	-4°F-104°F / -20°C-40°C
Charging Temperature	32°F-104°F / 0°C-40°C
Size	14.61×8.07×9.84 in / 37.1×20.5×25 cm
Net Weight	10.5 kg / 23.1 lb
