Anker SOLIX Solarbank E1600 0W Output Switch USER GUIDE (A17Y0)

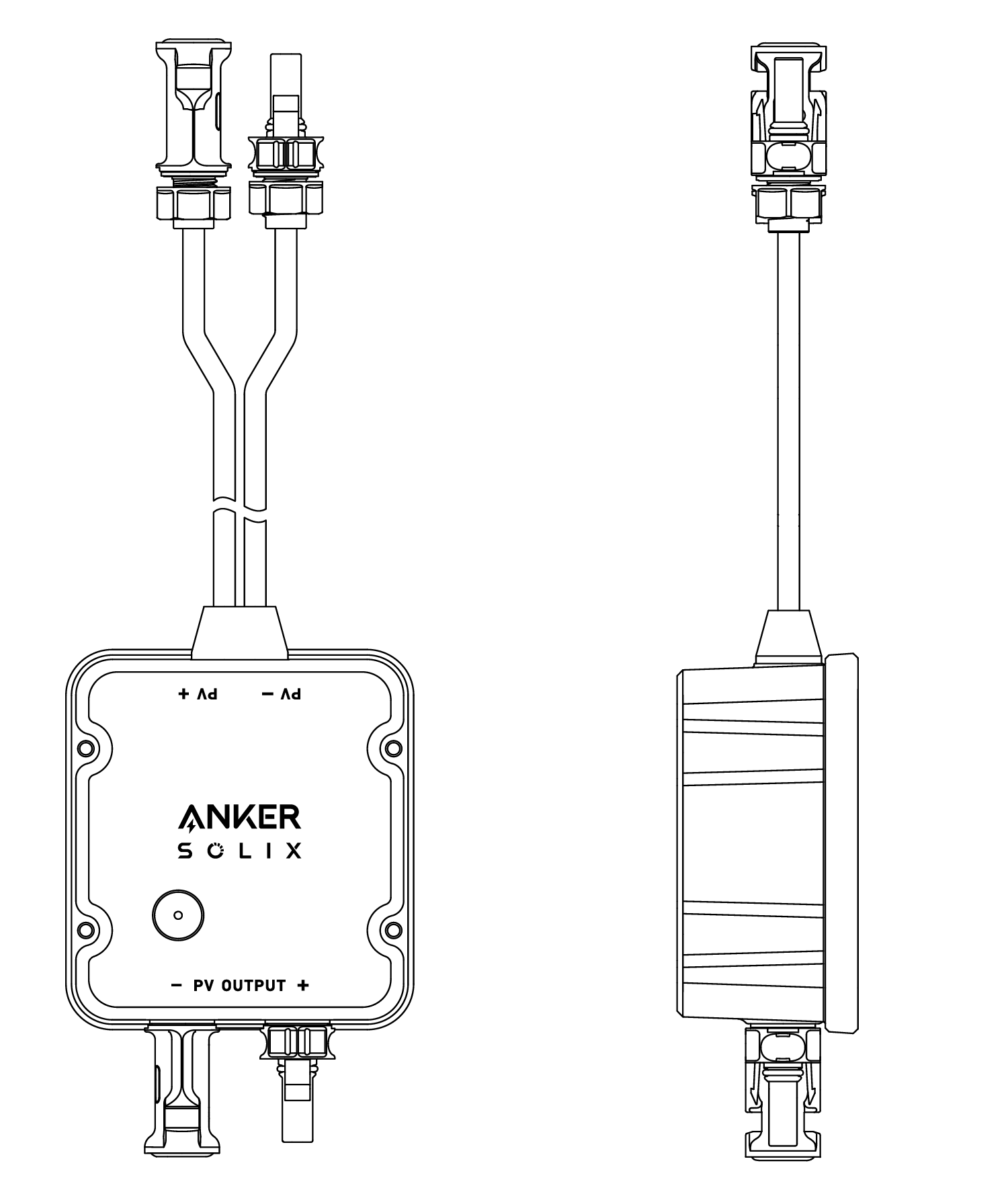

At a Glance

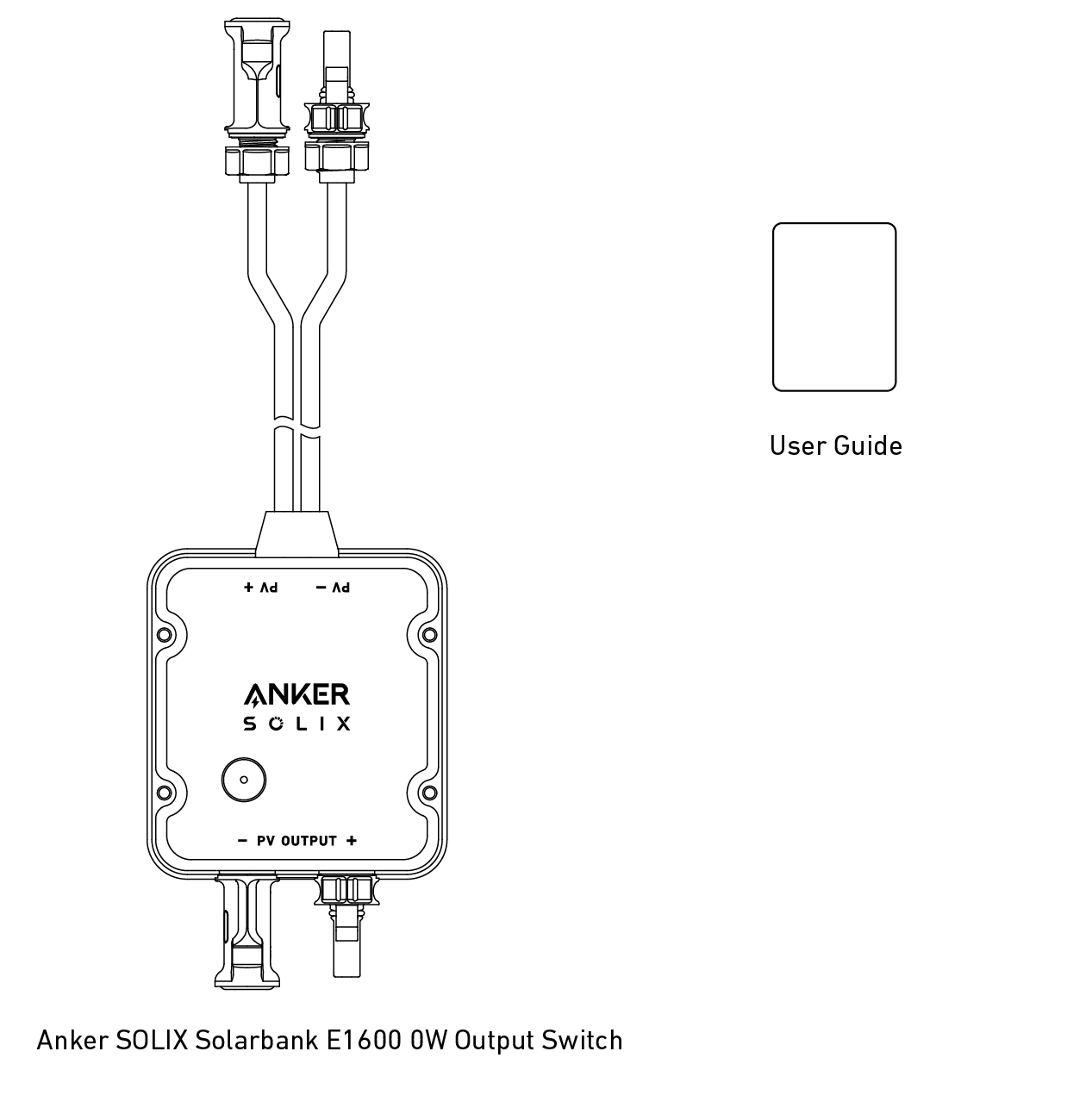

What's in the Box

Connecting Cables

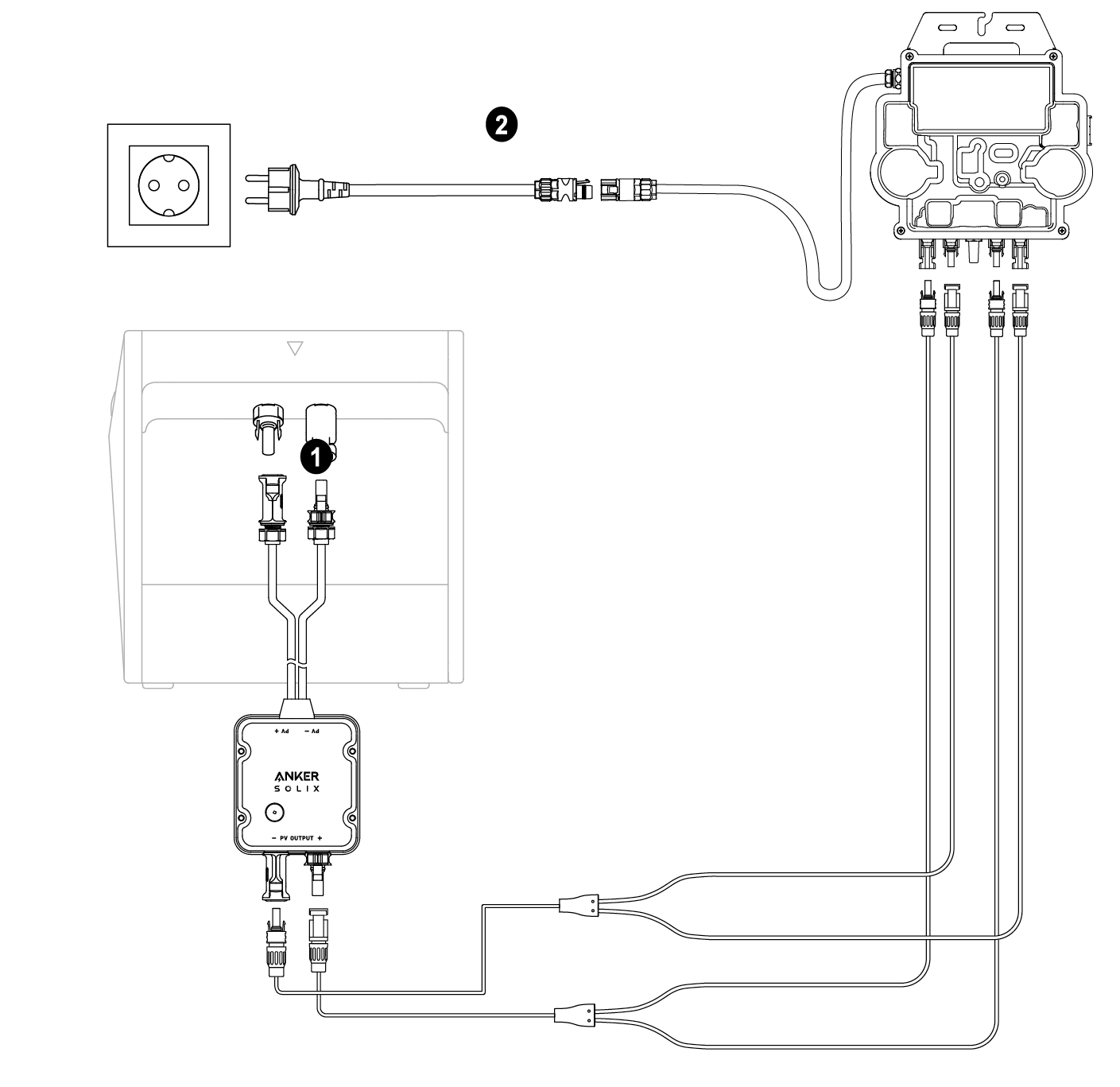

Single Solarbank

Connect Solarbank to the Output Switch using the included MC4 output cables.

Connect the Output Switch to the microinverter using the MC4 output cable.

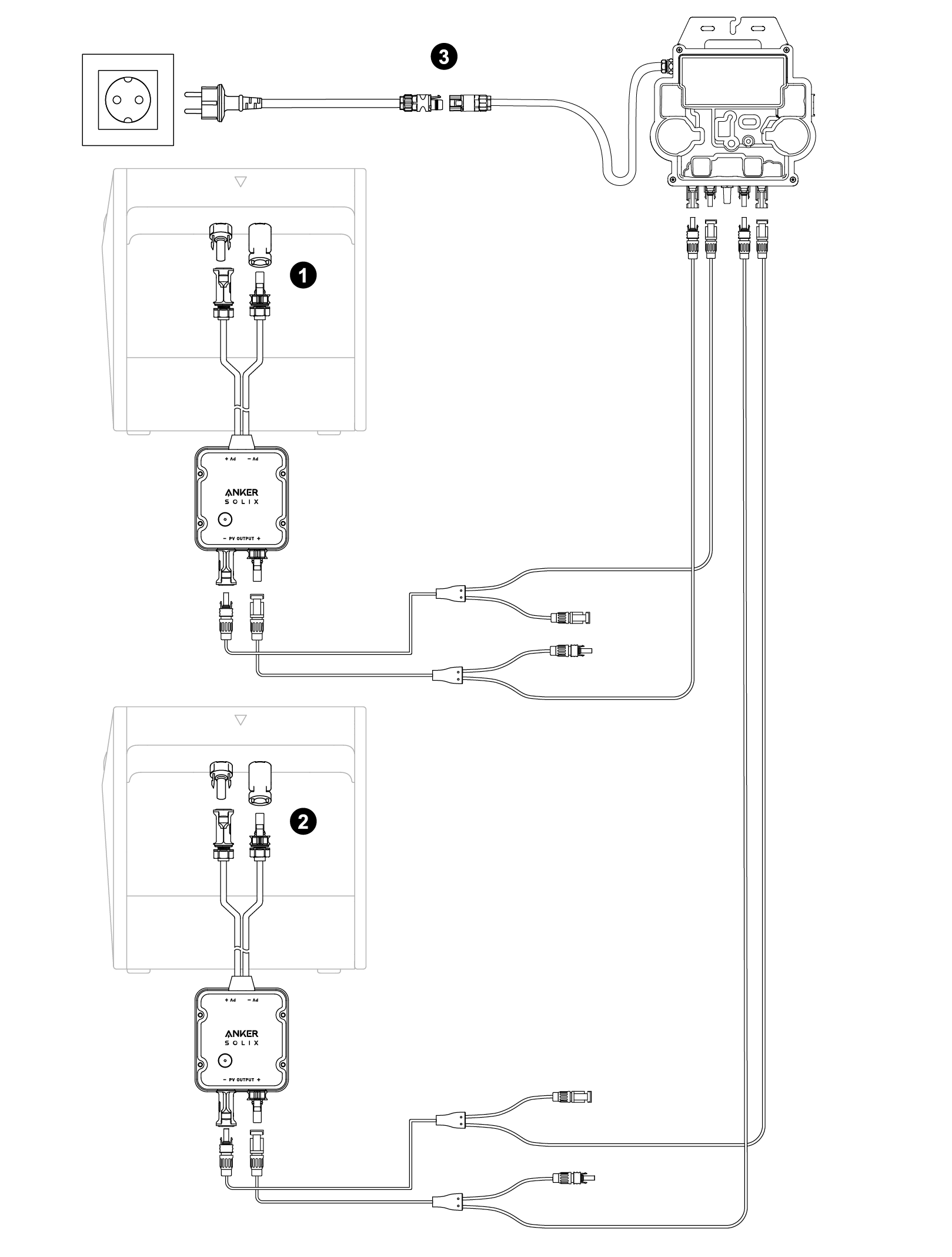

Dual System

Connect Solarbank to the Output Switch using the included MC4 output cables.

Connect the Output Switch to the microinverter using the MC4 output cable.

Repeat the above steps to connect to another Solarbank. There is one male and one female connector left unoccupied for the MC4 output cable.

When installing two Solarbanks, you need to install a microinverter. In this situation, you can choose not to connect the Output Switch.

Using the App

NOTE:

* Before using the 0W Output Switch, make sure that the Solarbank has been configured.

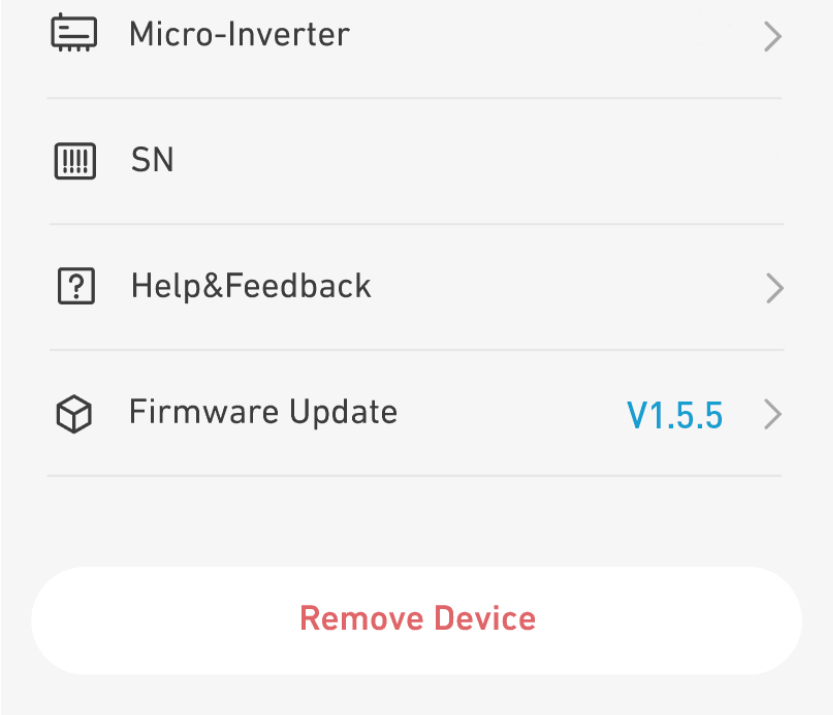

* Update the app version to 2.0.2 or later. Make sure your firmware is also updated to the new version.

NOTE:

App Log In

You can login via your Anker account, Amazon, or Apple ID.

If you do not have an Anker account, you can tap [Sign Up] to sign up for an account:

• Please prepare an email for the registration process. Passwords must contain 8-20 characters, uppercase and lowercase letters, numbers, and symbols.
• Please ensure that the Solarbank has completed its network configuration first. Once the Solarbank has finished configuring, then proceed with the Bluetooth pairing steps with Anker SOLIX Solarbank E1600 0W Output Switch.

Find the app device page.

Network Configuration

Network Configuration

Step 1th1. Find the app device page.

2. Tap at th2. Tap at the top right corner of the Devices page.

2. Tap at the top right corner of the Devices page.

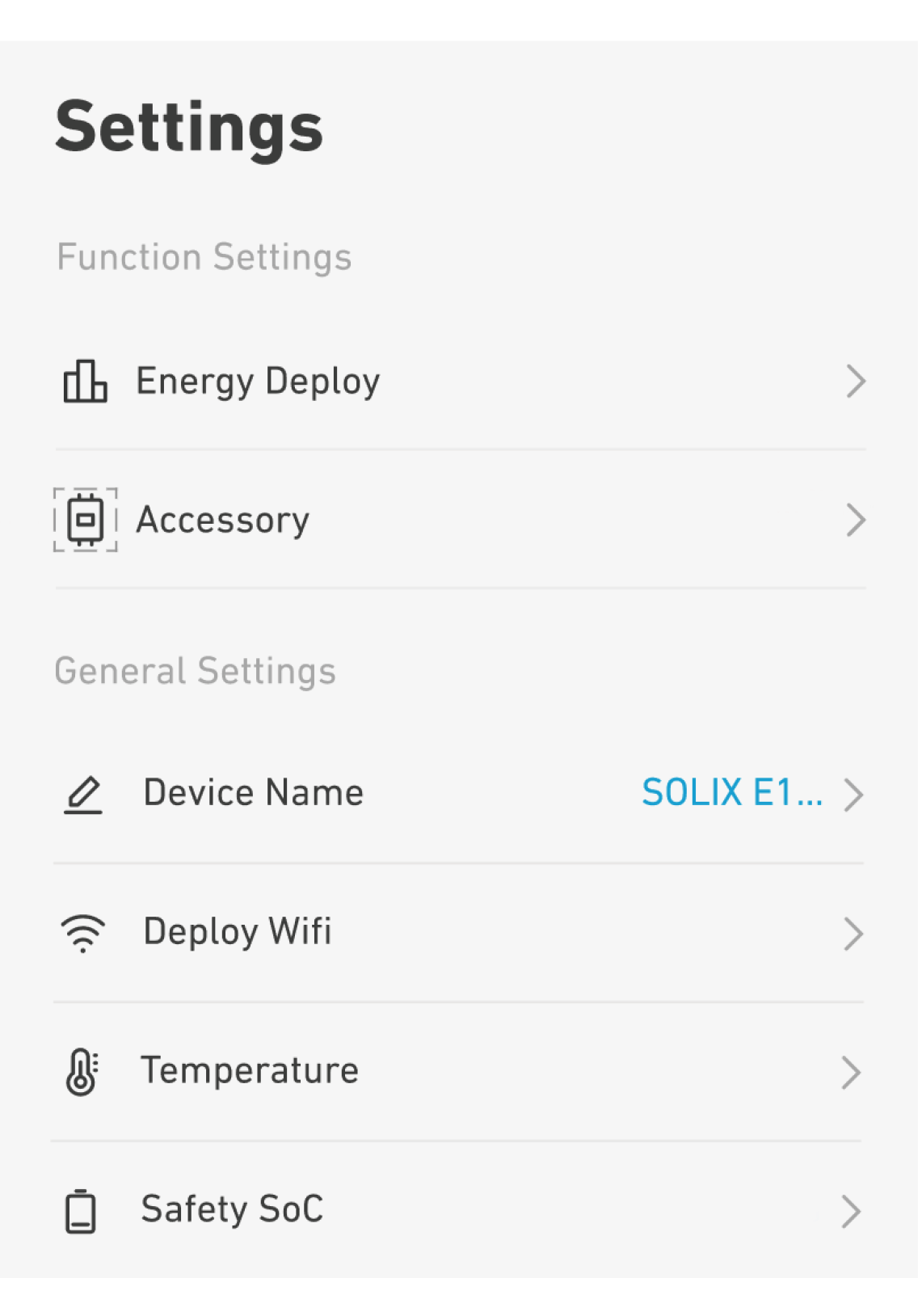

Step 2 :p 1. Tap [Accessory].

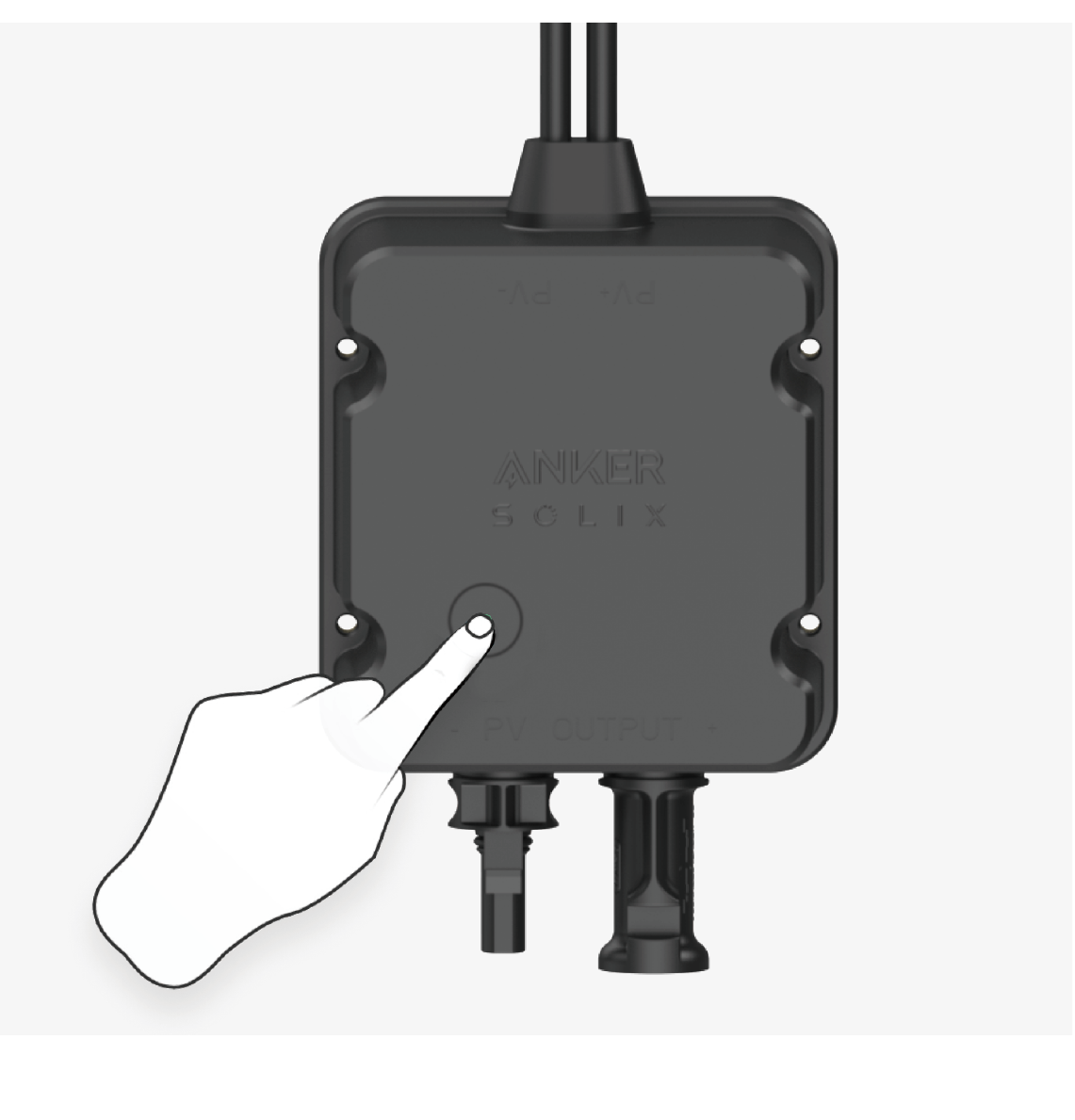

2. Tap at thp2. Press the IoT button for 3s to make sure Anker SOLIX Solarbank E1600 0W Output Switch works normally.

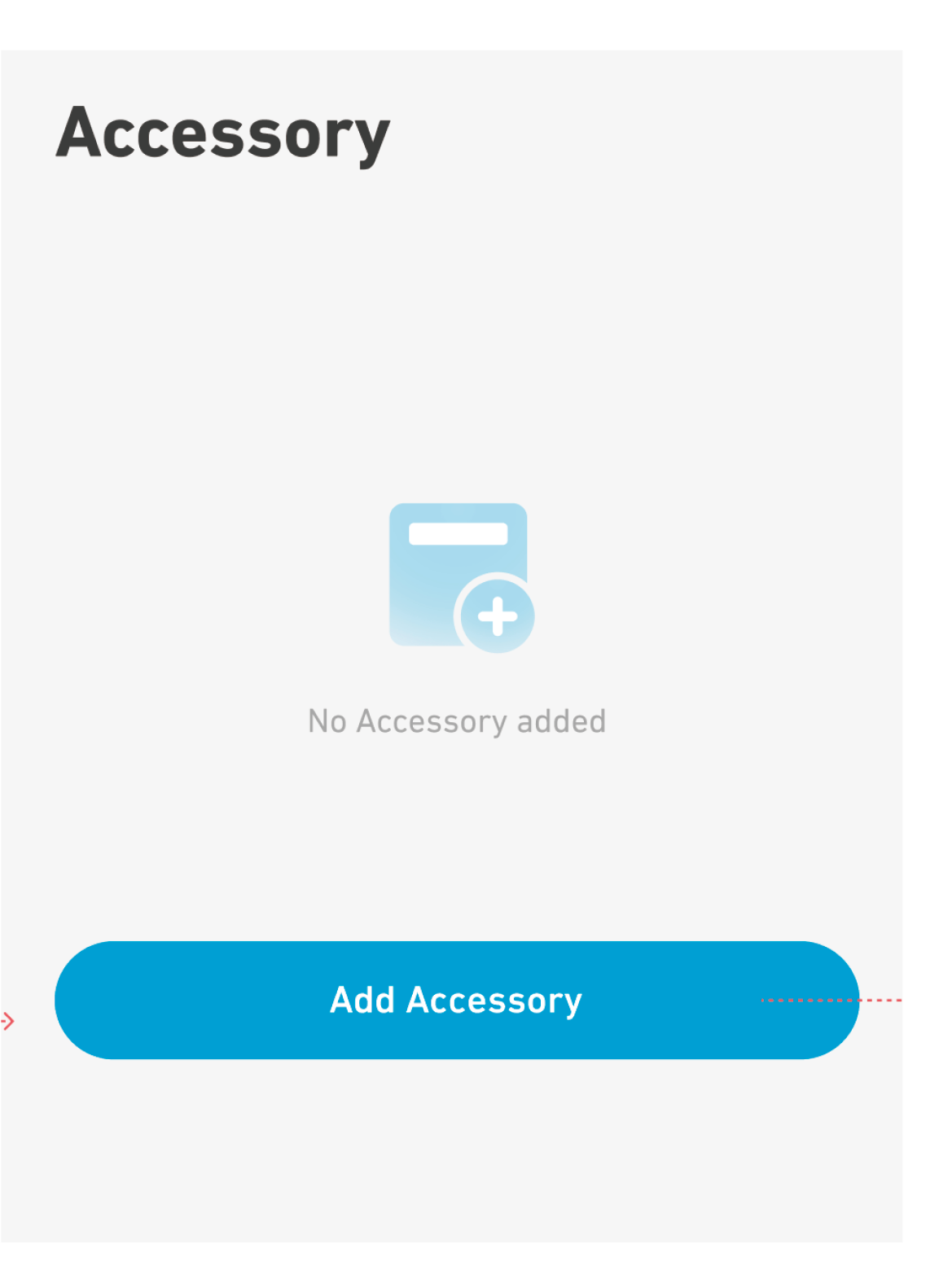

Step 3 : Tap [Add Accessory].

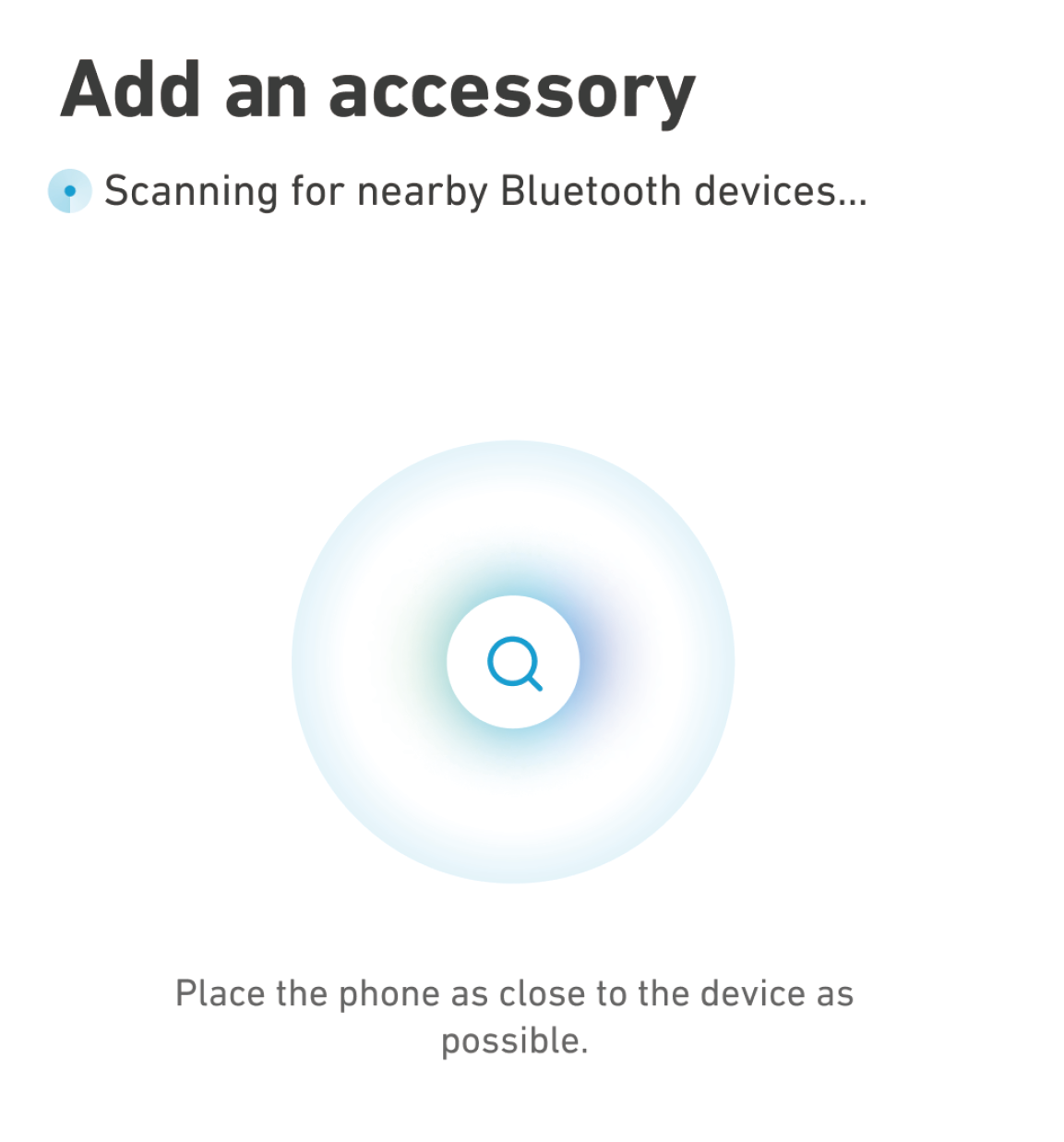

Step 4 : Wait for Bluetooth to search.

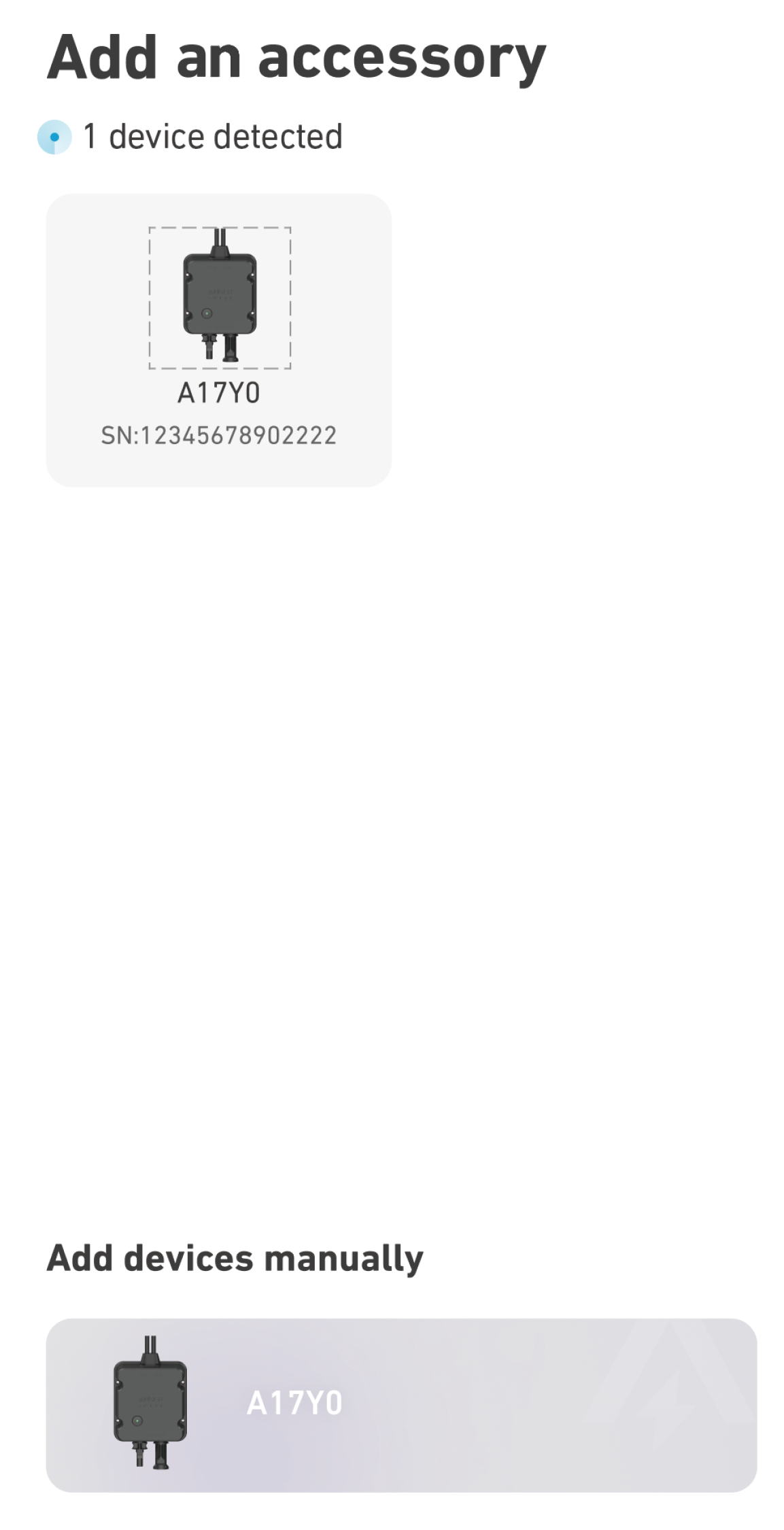

Step 5 : Tap [A17Y0].

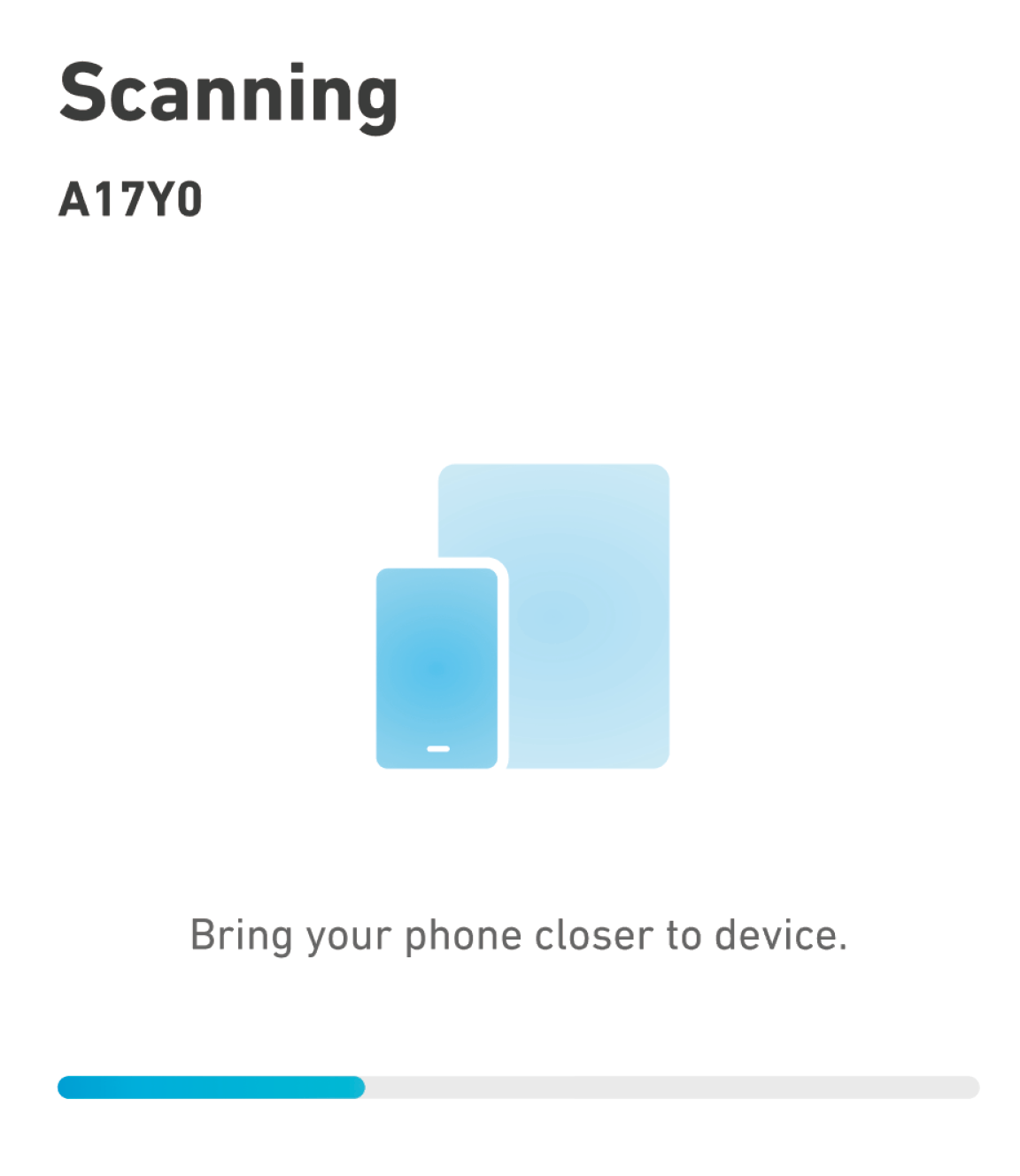

Step 6 : Wait for Bluetooth pairing.

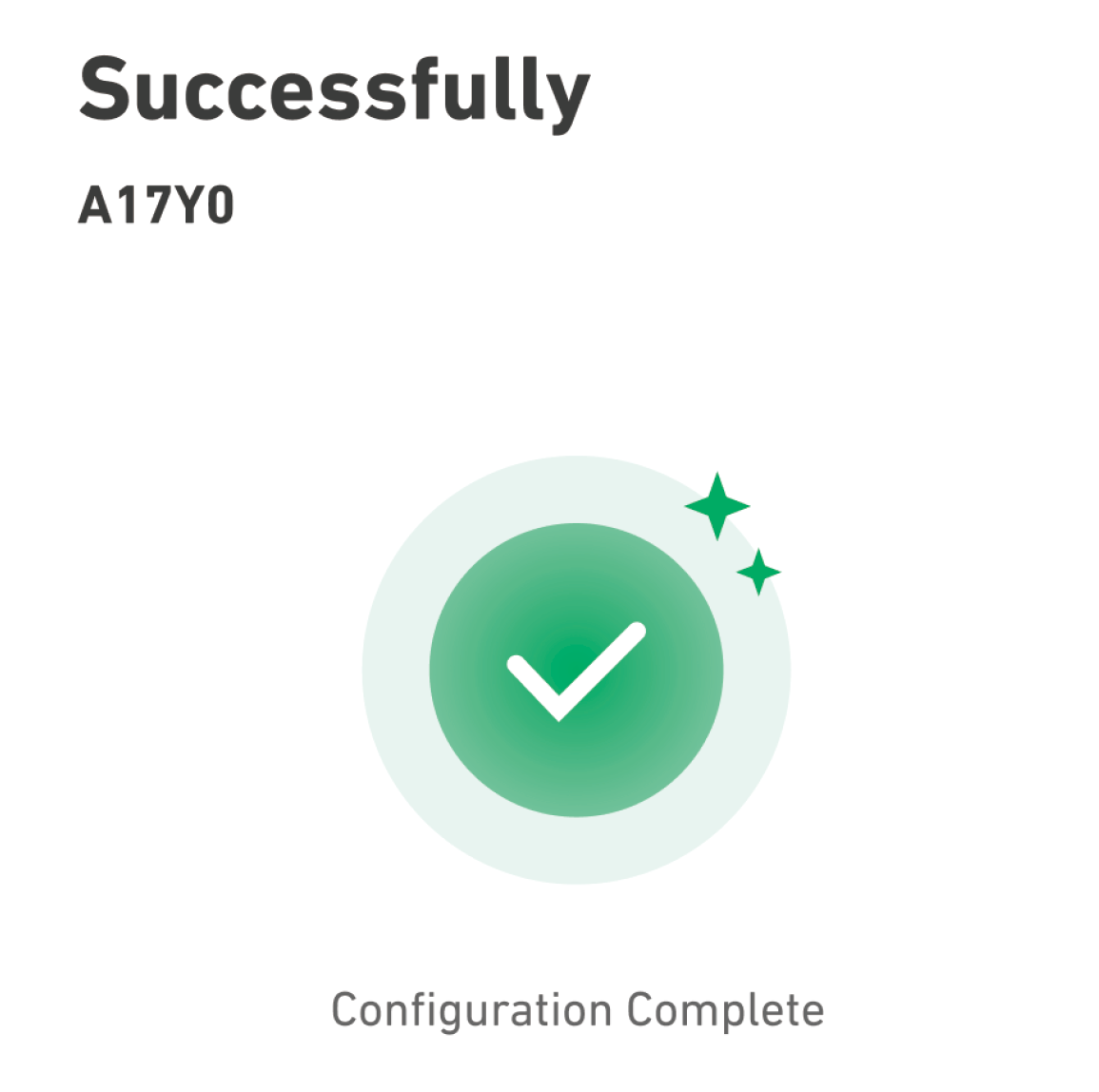

Step 7 : Your Output Switch has successfully been configured to the network.

2. Tap at thp If the Bluetooth pairing process fails, you can try again.

Setting the Output to 0W

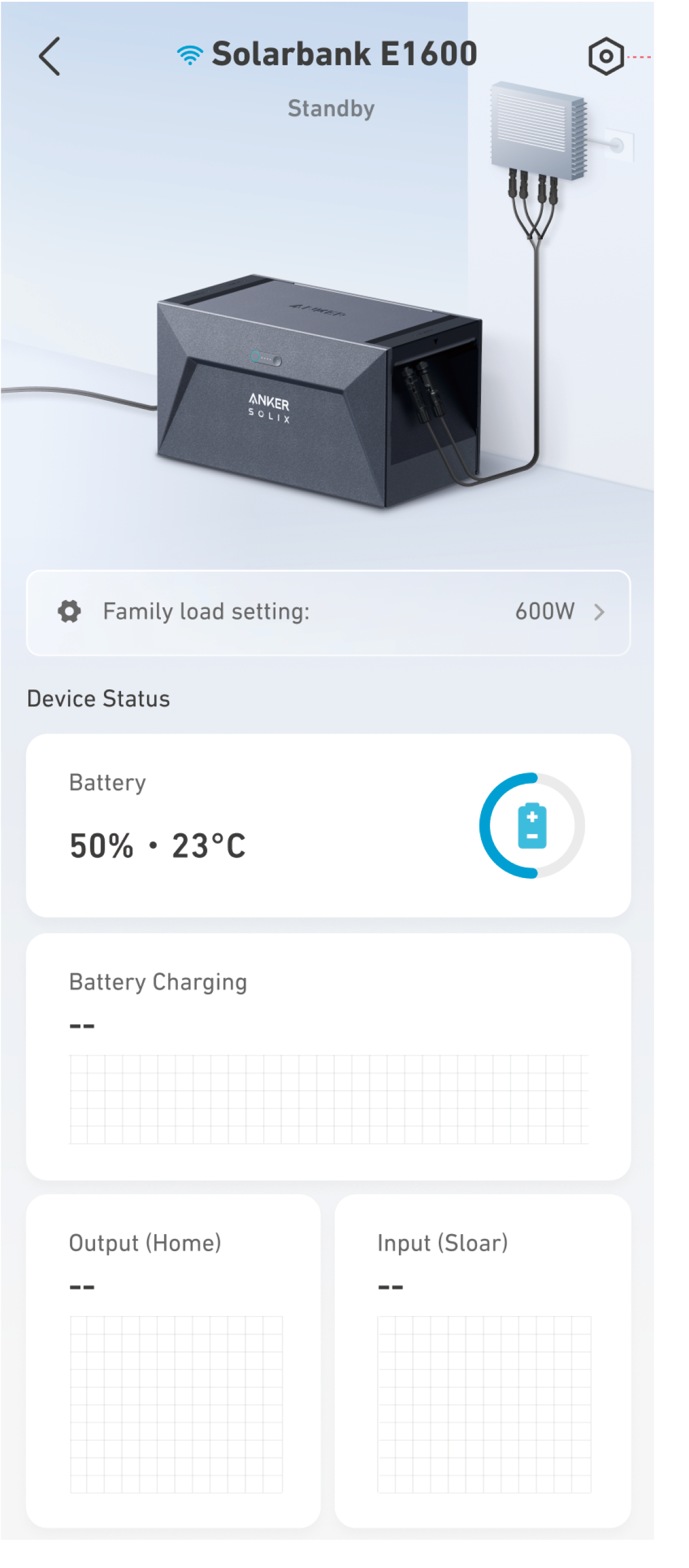

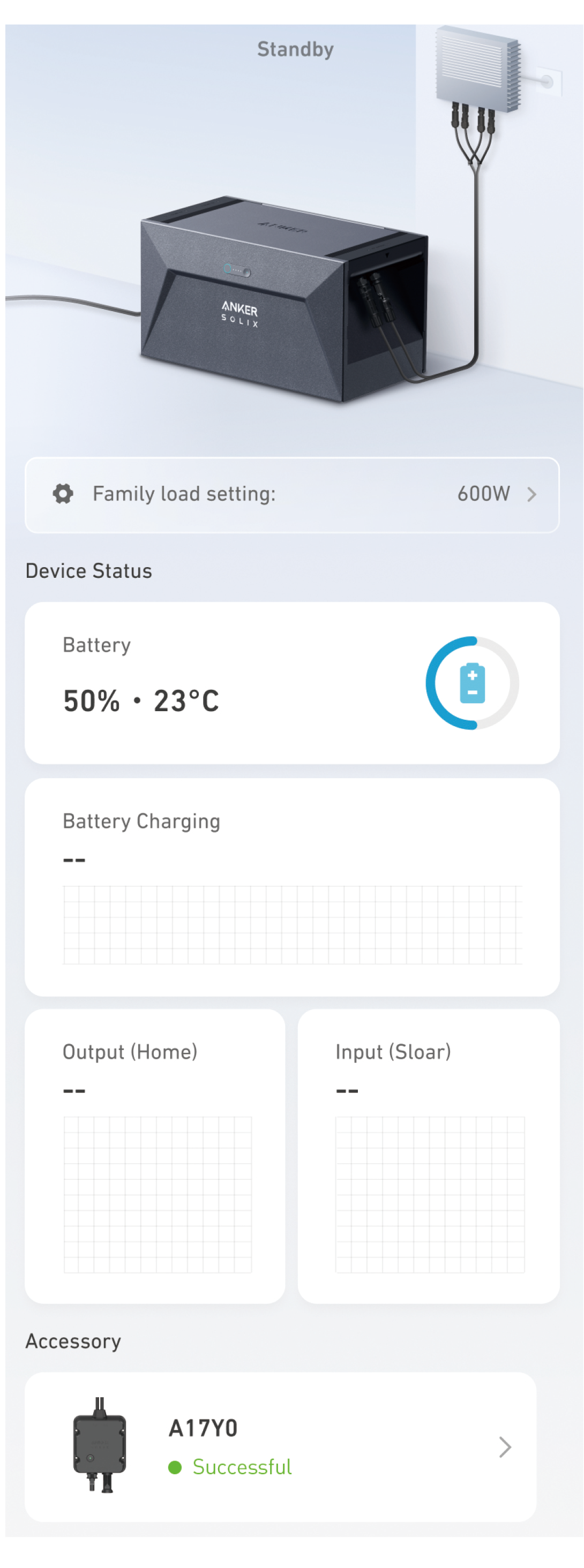

Step 1 : Tap [Family Load Setting]

Step 1 : Tap [Family Load Setting]

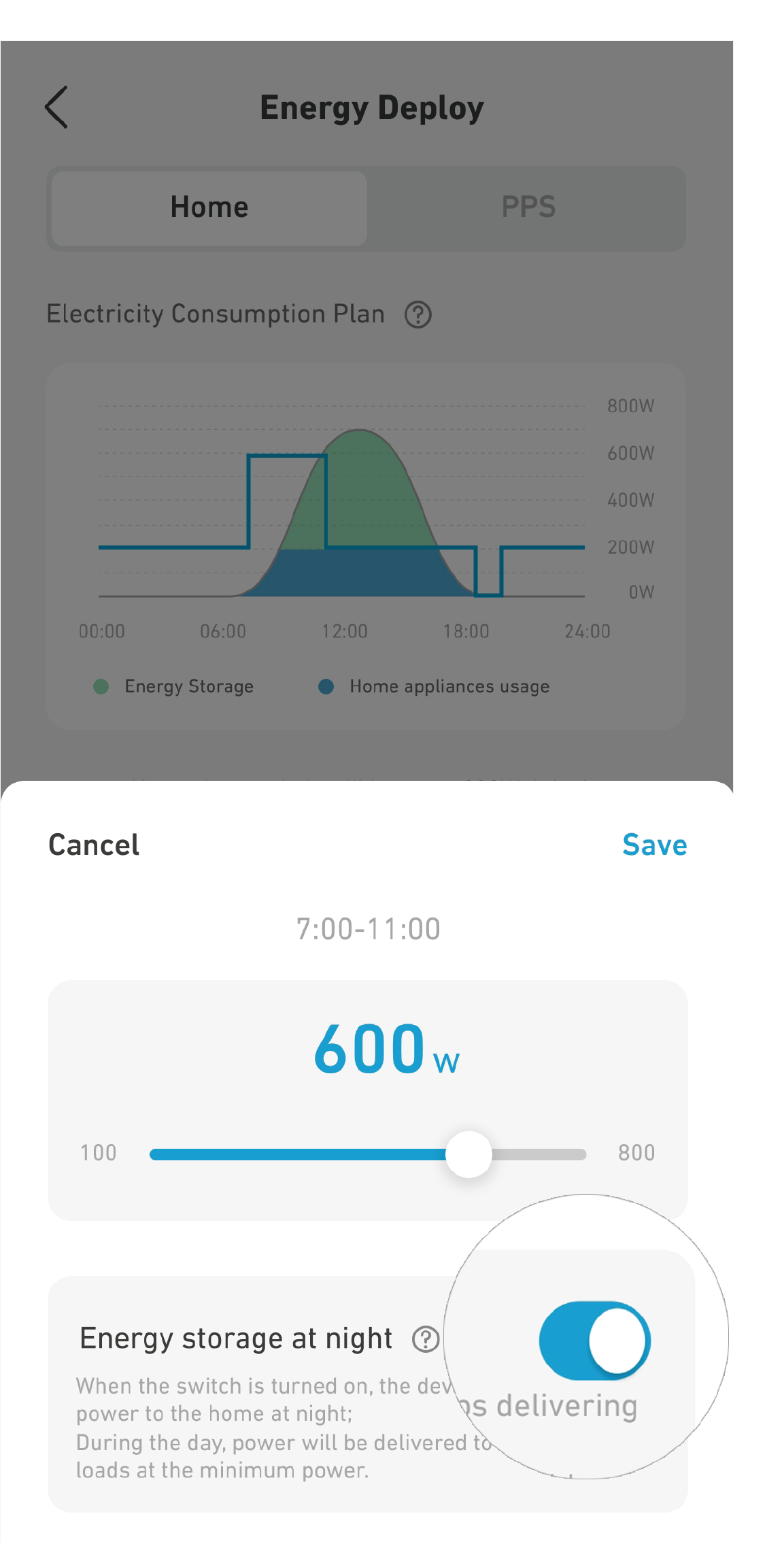

Step 2 : Set to 0W

Specifications

Specifications are subject to change without notice.

Name	Anker SOLIX Solarbank E1600 0W Output Switch
Wireless type	Bluetooth
Input port	MC4
Voltage range	18-75V
Output port	MC4
Temperature	-25-65℃
Dimensions	100×90×47mm
Net weight	296g
Waterproof rating	IP65
Warranty	10 years
