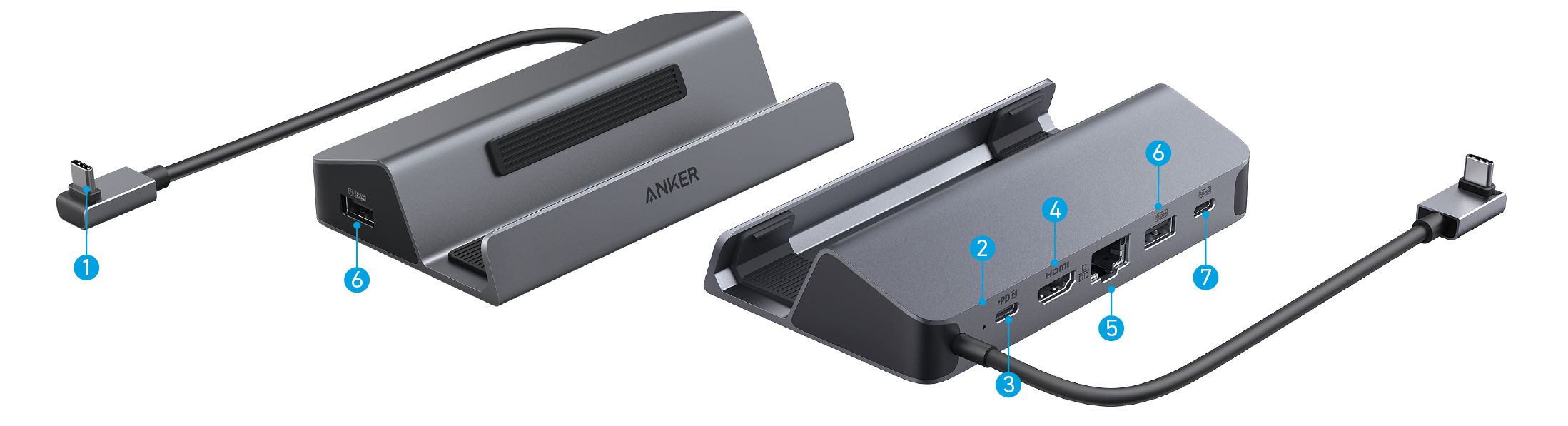

At a Glance
|
No. |
Name |
Description |
|
|
USB-C Connector |
Connects to a game console. |
|
|
Power Indicator |
Turns white when connected to power. |
|
|
PD-IN |
Connects to a PD charger to charge a connected game console. · Up to 100W input |
|
|
HDMI 2.0 Port |
Up to 4K@60Hz |
|
|
Ethernet Port |
Connects to a router or modem at 10/100/1000 Mbps. |
|
|
USB-A 3.2 Gen 1 Port ×2 |
5 Gbps data transfer |
|
|
USB-C 3.2 Gen 1 Port |
5 Gbps data transfer |
*Tip: The table above shows the maximum supported resolutions. Actual resolution varies based on the specifications of the host device.
Specifications
|
Data Speed |
Up to 5 Gbps |
|
Supported Systems |
macOS 12 or later, Windows 10 or later, SteamOS |
Note: The 'x' of SN Code: xxxxxxxxxxxxxxxx is a variable, see below table.
|
Variable 'x' |
Range of variable |
Content |
|
Seventh |
0-9 or A-F |
Denotes the hardware version which is not effected on the safety compliance. |
|
Eighth |
8,9,A,B,C... |
Denotes the year, 8 means 2018, 9 means 2019, A means 2020, B means 2021, C means 2022, and so on. |
|
Ninth and tenth |
01,02,03... |
Denotes weeks, 01 means the first week in this year, 02 means the secondary week in this year, and so on. |
|
Eleventh |
1-7 |
Denotes date, 1 means Monday, 2 means Tuesday..., 7 means Sunday and so on. |
|
The last five |
00001-99999 |
Denotes serial No. |
