Anker USB Power Strip (10-in-1, 20W) USER GUIDE

Anker USB Power Strip (10-in-1, 20W) USER GUIDE (A91F2)

Overview

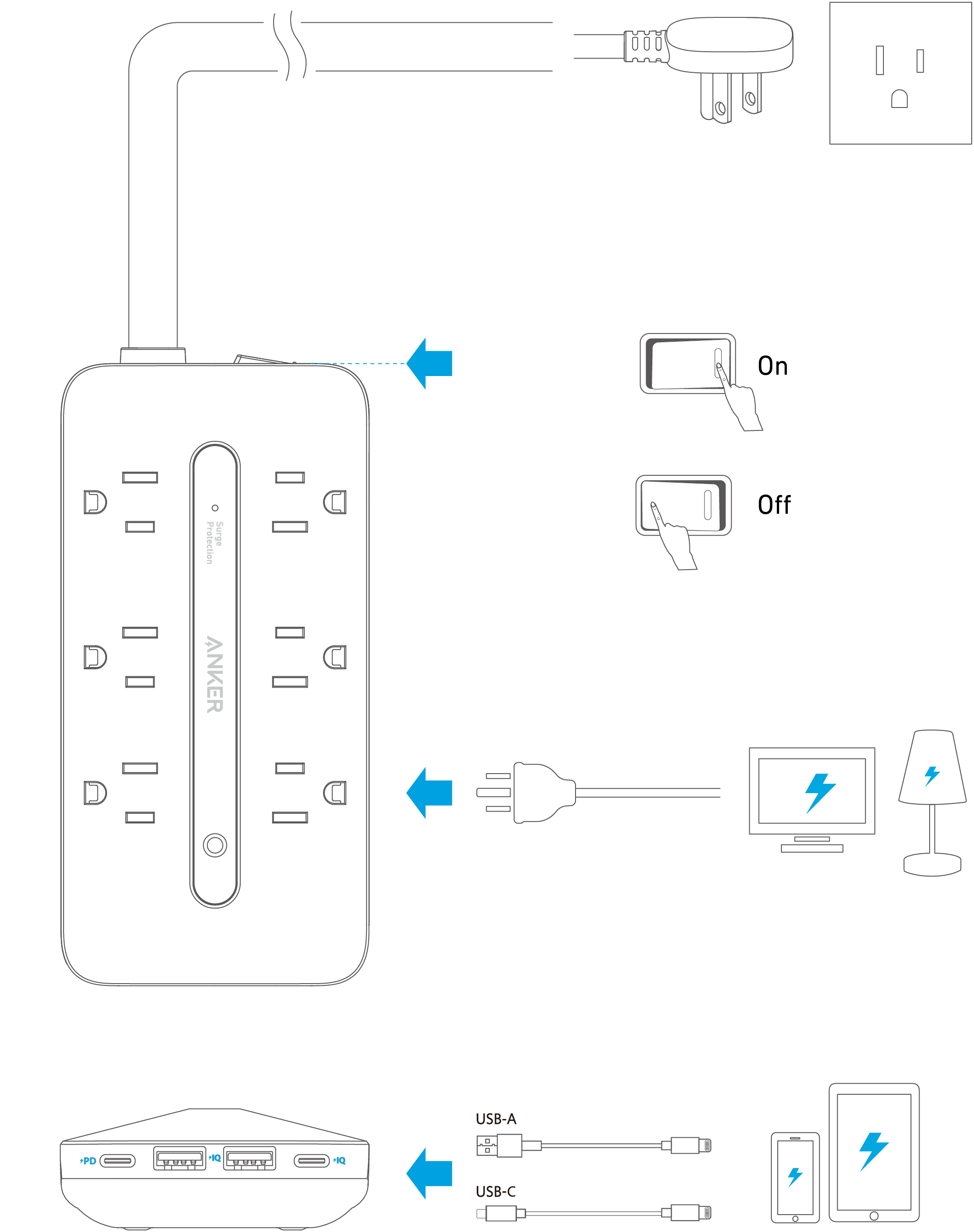

Using Your Power Strip

When the switch is turned on, the Surge Protection Light and LED indicator will turn white.

Specifications

Electrical Rating	125V~, 60Hz, 15A, 1875W
1 Port	USB-A1 / USB-A2 Output: 5V 2.4A (12W Max) USB-C1 Output: 5V 3A / 9V 2.22A / 12V 1.67A (20W Max) USB-C2 Output: 5V 3A (15W Max)
2 Ports	USB-C1 + USB-C2 Output: 15W Shared Max USB-A1 + USB-A2 Output: 12W Shared Max USB-C1 / USB-C2 + USB-A1 / USB-A2 Output: 15W Shared Max
3 Ports	USB-C1 + USB-C2 + USB-A1 / USB-A2 Output: 15W Shared Max USB-C1 / USB-C2 + USB-A1 + USB-A2 Output: 15W Shared Max
4 Ports	USB-C1 + USB-C2 + USB-A1 + USB-A2 Output: 15W Shared Max
Surge Energy	300J
Size	16079.531.2mm

Note: The USB modules support an input voltage of 100-240V~ 50-60Hz.
