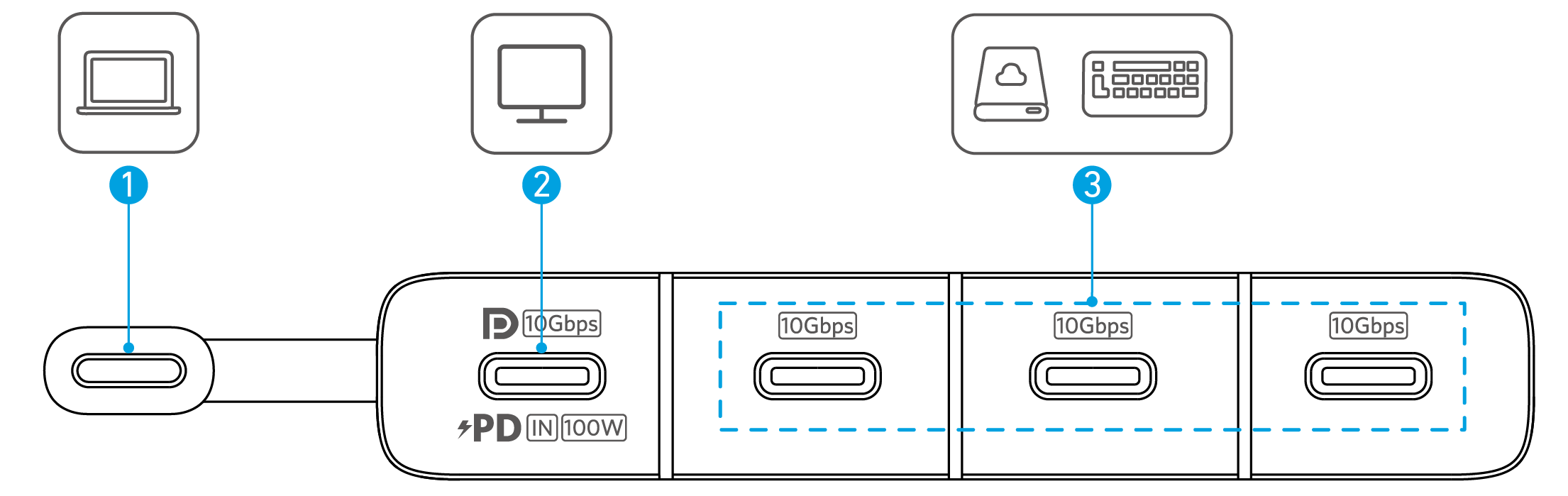

At a Glance
|
No. |
Name |
Description |
|
|
USB-C Connector |
Connects to a laptop, desktop, or phone. Pass-through charging: 85W Max |
|
|
Full-function USB-C Port |
· Up to 100W PD input to charge the host. (Wall charger not included) · 10 Gbps data transfer · 4K@60Hz. Supports screen mirroring. |
|
|
USB-C 3.2 Gen 2 Port ×3 |
· 10 Gbps data transfer. · Doesn't support screen mirroring. |
Specifications
|
Data Speed |
10 Gbps |
|
Supported Systems |
macOS 12 or later, Windows 10/11, ChromeOS |
|
Supported Devices |
Devices that support full-function USB-C port |
Note: The 'x' of SN Code: xxxxxxxxxxxxxxxx is a variable, see below table.
|
Variable 'x' |
Range of variable |
Content |
|
Seventh |
0-9 or A-F |
Denotes the hardware version which is not effected on the safety compliance. |
|
Eighth |
8,9,A,B,C... |
Denotes the year, 8 means 2018, 9 means 2019, A means 2020, B means 2021, C means 2022, and so on. |
|
Ninth and tenth |
01,02,03... |
Denotes weeks, 01 means the first week in this year, 02 means the secondary week in this year, and so on. |
|
Eleventh |
1-7 |
Denotes date, 1 means Monday, 2 means Tuesday..., 7 means Sunday and so on. |
|
The last five |
00001-99999 |
Denotes serial No. |
