Anker USB-C Hub (10-in-1, Dual Display) User Guide (A83C2)

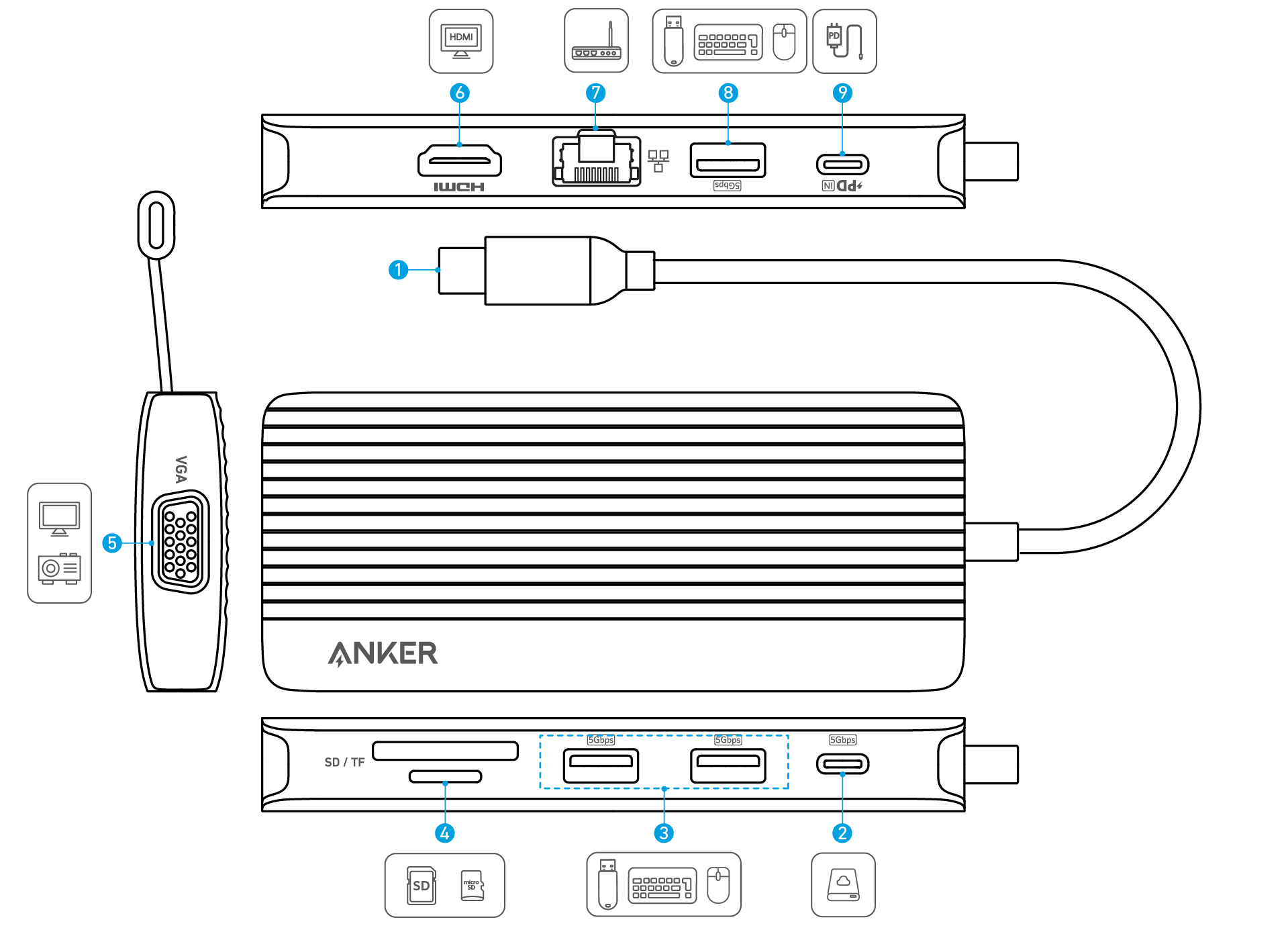

At a Glance
|
|
USB-C Port (Connects to Host) |
Connects to a laptop. |
|
|
USB-C Data Transfer Port |
5 Gbps data transfer. |
|
|
USB-A Data Transfer Port |
5 Gbps data transfer. |
|
|
SD / microSD Card Slot |
|
|
|
VGA |
Connect to a device with a VGA port to stream video at resolutions up to 1080P @ 60Hz. |
|
|
HDMI Port |
Connect to a device with an HDMI port to stream video at resolutions up to 4K@30 Hz. |
|
|
Ethernet Port |
Connect to a router or modem at 10/100/1000 Mbps. |
|
|
USB-A Data Transfer Port |
5 Gbps data transfer. |
|
|
PD-IN port |
|
Specifications
|
Data Transfer Speed |
5Gbps |
|
Supported Systems |
macOS 12 or later, Windows 10 or later |
|
Supported Devices |
Compatible with laptops and tablets that support USB-C port |
Video Resolution and Refresh Rate
|
OS |
Windows OS |
Mac OS | ||
|
Item |
VGA |
HDMI 1.4 |
VGA |
HDMI 1.41080P @ 60Hz |
|
Single Monitor |
- |
4K@30Hz |
- |
4K@30Hz |
|
1080P @ 60Hz |
- |
1080P @ 60Hz |
- | |
|
Dual Monitor |
1080P @ 60Hz |
1080P @ 60Hz |
1080P @ 60Hz |
1080P @ 60Hz |
*The table above shows the maximum supported resolutions of this dock. Actual display output will vary based on the host device specifications.
Video Output Mode
A / B only mean the different contents shown on the screen.
|
Item |
Laptop screen |
Monitor connected by HDMI |
Monitor connected by VGA |
|
Windows OS |
A |
B |
B |
|
Mac OS |
A |
B |
B |
